SOFTWARE: LGWorksRT

The LGWorks Run-Time (RT) software is used primarily on moving assembly lines with DSP Sensors to run inspection routines wirelessly, created in LGWorks.

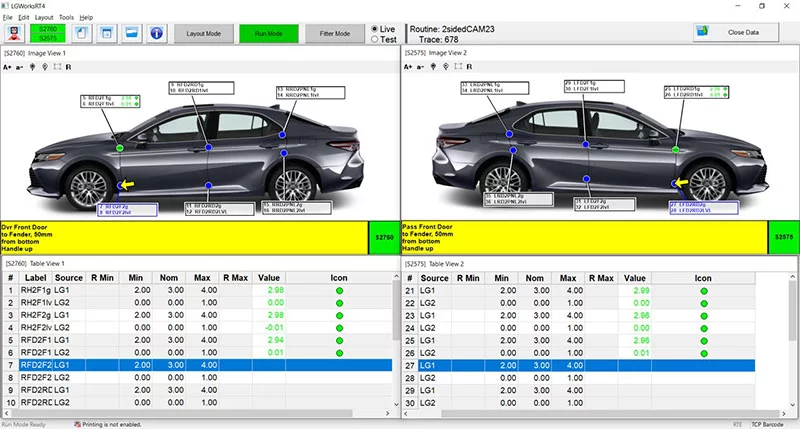

In most cases, LGWorksRT is used on a moving assembly line to make measurements on vehicles as they move through the inspection station. Routines can be run by one or two operators working simultaneously using multiple DSP sensors. The measurement results are displayed on a large screen mounted over the line and out-of-spec conditions are color-coded for easy identification.

LGWorksRT Features

Features of LGWorks

Barcode to Routine Capability

A routine can be launched in LGWorksRT by entering a trace that is specifically associated with the routine. The trace can be a VIN or a sequence number or any identifier of the part or assembly being inspected. In assembly plants, the VIN or sequence number is usually on a barcode label attached to the part. Using the optional barcode reader on the sensor to read the barcode and associating a precise trace to a specific routine, that routine will automatically open in LGWorksRT in preparation for measuring.


One or Two Operators

Routines can be run by one operator or by two operators working simultaneously using the handheld DSP sensors.

A DSP sensor must be directly connected to the computer via a USB cable or through a wireless ZigBee link to run a routine with LGWorksRT.


Communication

Whether the communications are accomplished wirelessly using the Zigbee module or through a USB cable inserted into a comm port on the computer, LGWorksRT sends virtual gauge setup commands, sensor messages and other commands to the LaserGauge®. The LaserGauge® executes the measurement based on those commands and sends the results back to LGWorksRT so that they can be displayed and logged.

Optional Fit-Gate station

This option works in conjunction with LGWorksRT. The gap and flush, or “fit”, data is recorded and entered into the plant’s database or quality management system. Measurement results from the Fit-Gate station can also be gathered and filtered and those results displayed on a separate monitor or LCD downstream where operators can adjust the ‘fit’ of any out of spec measurement.

LGWorksRT Specifications

LGWorks Specifications

  • System Compatibility:

    All LaserGauge® controllers and DSP handheld sensors

  • Communication to LaserGauge® from Computer:
    Zigbee USB Wireless stick or USB cable
  • Operating System:
    Windows 10™
  • Disk Space:
    64MB
  • Memory:
    512 MB RAM

Learn more about the LGWorks Suite of LaserGauge® software products
